| İşlemci |
Intel® Xeon® processor E5-2600 v3 product family(145W)* Intel® Xeon® processor E5-2600 v4 product family (145W) * 2 x Socket R3 (LGA 2011-3) *Refer to support page for more information QPI 6.4 / 8.0 / 9.6 GT/s |
| Nesil |
E8 |
| Çekirdek |
Intel® C612 PCH |
| Bellek |
Capacity : Maximum up to 1024GB LRDIMM Memory Type : RDIMM DDR4 2133 /1866/1600/2400 2133 /1866/2400 /1600 DDR4 LRDIMM Memory Size : * Refer to support page for more information 64GB, 32GB LRDIMM 4GB, 16GB, 32GB, 8GB RDIMM * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) |
| Genişleme Yuvaları |
3 + 1 Low-profile 1 x PCI-E Gen3 x16 (x8 link) 2 x PCI-E Gen3 x8 (x8 link) 1 x OCP Mezzanine (Gen3 x8 link)* * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional) |
| Depolama |
SATA Controller : 9 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector) Intel® C612 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 10, 5 ) SAS Controller : ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) 12G SAS Support ASUS PIKE II 3008 8-port SAS HBA card(Optional) |
| Harddisk Bölmeleri |

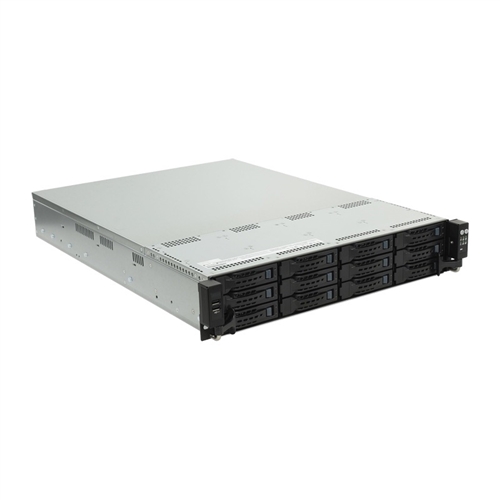

12 x Hot-swap 3.5" Storage Bays 2 x Hot-swap 2.5" Storage Bays 1 x M.2 (NGFF 2242) |
| Ağ |
2 x Intel® I210AT + 1 x Mgmt LAN |
| Grafik |
Aspeed AST2400 with 32MB VRAM |
| Ön G/Ç Bağlantı Noktaları |
2 x USB 2.0 ports |
| Arka G/Ç Bağlantı Nooktaları |
2 x RJ-45 ports 1 x RJ-45 Mgmt LAN port 2 x USB 3.0 ports 1 x VGA port 1 x PS/2 KB/MS port 1 x External Serial Port |
| Led Anahtarları |
Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use Rear Switch/LED: 1 x Q-Code/Port 80 LED |
| İşletim Sistemi Desteği |
Citrix XenServer Windows® Server 2012 R2 Ubuntu SuSE® Linux Enterprise Server RedHat® Enterprise Linux Windows® Server 2012 Windows® Server 2016 CentOS *Subject to change without any notice Windows® Server 2008 R2 VMware |
| Yönetim Çözümü |
ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-IP |
| Sertifikalar |
BSMI, C-Tick, FCC(Class A), CE |
| Boyutlar |
615mm x 444mm x 88mm 24.21" x 17.48" x 3.46" |
| Yükseklik Ölçüsü |
2U |
| Ağırlık |
Net Ağırlık: 15.05 Kg Brüt Ağırlık: 22.15 Kg |
| Güç Kaynağı |
1 + 1 Yedekli 770W 80 PLUS Platinum Güç Kaynağı: 100-127Vac / 200-240Vac, 10A / 5A, 50-60Hz, Sınıf I |
| Çalışma sıcaklığı |
Çalışma sıcaklığı: 10 ? ~ 35 ? Desteklenmeyen sıcaklık: -40 ? ~ 70 ? desteklenmeyen nem oranı :% 20 -% 90 (yoğunlaşmayan) |
